# TCM-100V Thermal Conductivity Meter

# TCM-100V

Quick Thermal Conductivity Meter

The TCM-100V measures the "vertical type" of Thermal Conductivity according to ASTM D5470.![TCM-100V Thermal Conductivity Meter](https://www.scientificgear.com/hs-fs/hubfs/TCM-100V%20Thermal%20Conductivity%20Meter.png?width=436&height=653&name=TCM-100V%20Thermal%20Conductivity%20Meter.png)

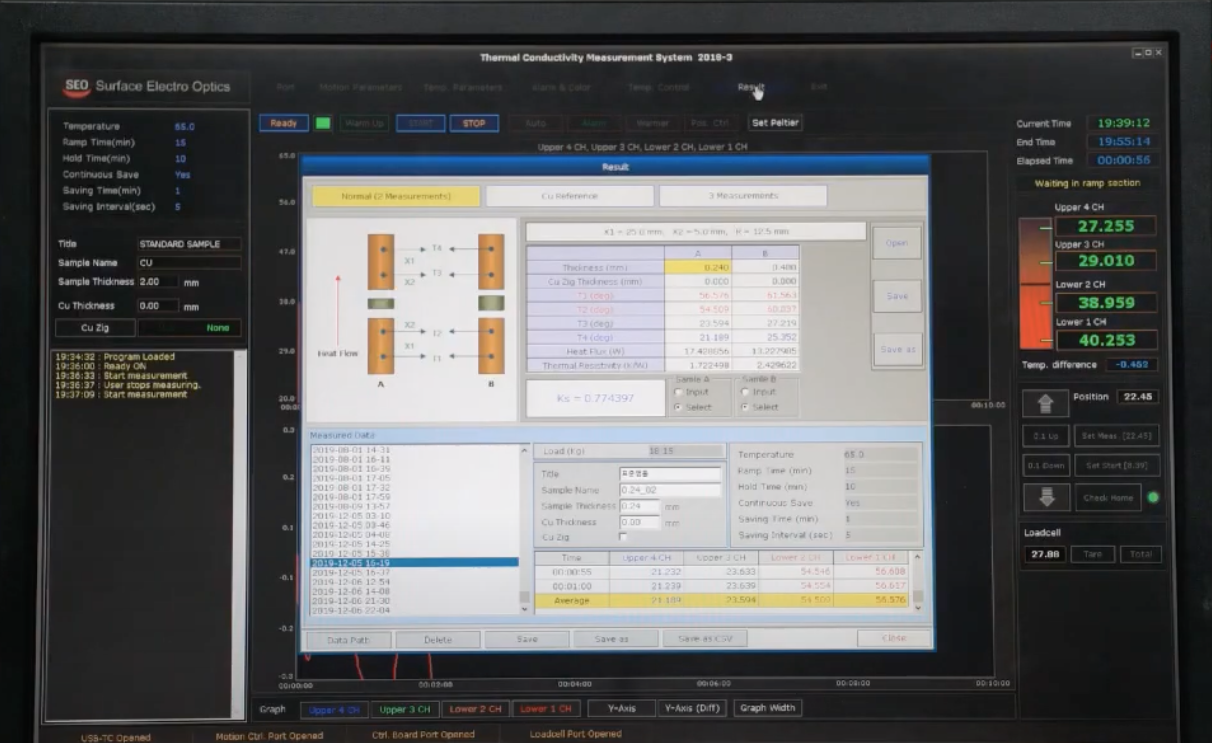

All functions can be controlled from the software, and even samples with multiple layers can be calculated by each individual layer.

 ![ASTMD5470a](https://www.scientificgear.com/hs-fs/hubfs/ASTMD5470a.png?width=234&height=272&name=ASTMD5470a.png)

### Specifications:

**Name:** TCM-100V Thermal Conductivity Meter

**Type:** Vertical Type of measurement

**Method:** per ASTM D5470

**Accuracy:** Within ±5%

**Measurement Range:** 0.1 ~ 80W/mk

**Conductive Thermal Resistance Range:** 0.05~5.0°C/W
 Pillar Presser Range**: **10~500psi(70~560kpa)**
** Operational Temperature Range: 40~100°C

**** Sample Preparation:  ****25mm circle or 22mmx22mm     square/0.02~10mm(t)

 ****Detecting Temperature:  ****±0.001°C resolution

**Device Weight: **20Kg

 **Power:** 220VAC 60HZ, 150W







![](https://fast.wistia.com/embed/medias/atcb7ja86s/swatch)







![ASTMD5470d](https://www.scientificgear.com/hs-fs/hubfs/ASTMD5470d.png?width=1207&height=759&name=ASTMD5470d.png)

![ASTMD5470c](https://www.scientificgear.com/hs-fs/hubfs/ASTMD5470c.png?width=1312&height=846&name=ASTMD5470c.png)

![ASTMD5470d](https://www.scientificgear.com/hs-fs/hubfs/ASTMD5470d.png?width=1207&height=759&name=ASTMD5470d.png)

![ASTMD5470e](https://www.scientificgear.com/hs-fs/hubfs/ASTMD5470e.png?width=1212&height=743&name=ASTMD5470e.png)
